The goal of this project was to design a replacement for the 3rd row seating in a 2021 Toyota 4runner allowing for extra storage space and an even surface for pets. The solution needed to be secure and easily removable. Utilizing an innovative twist lock design, each of the 4 platform mounts can be quickly detached, freeing up the full space in the trunk area.

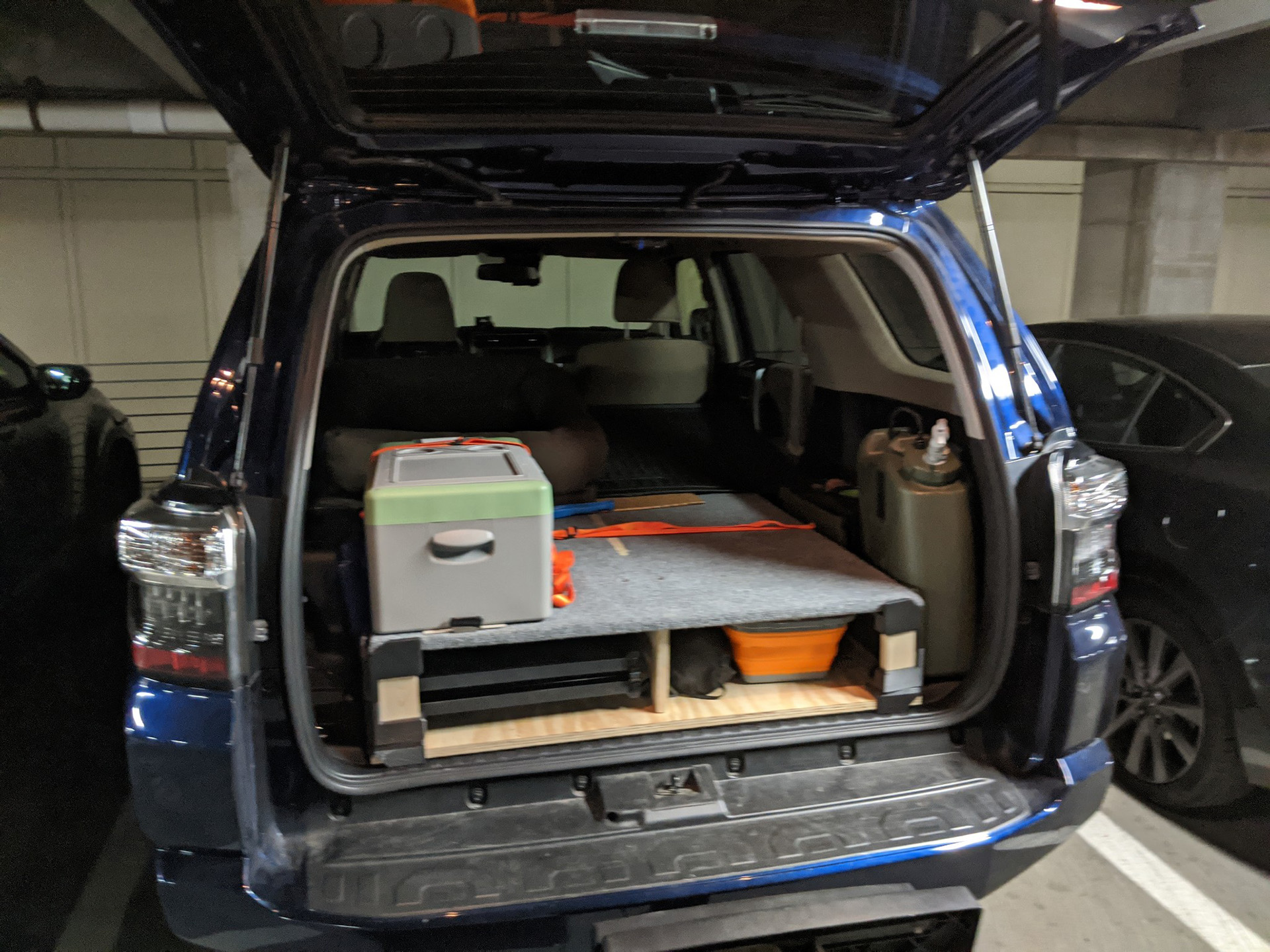

The finished product installed

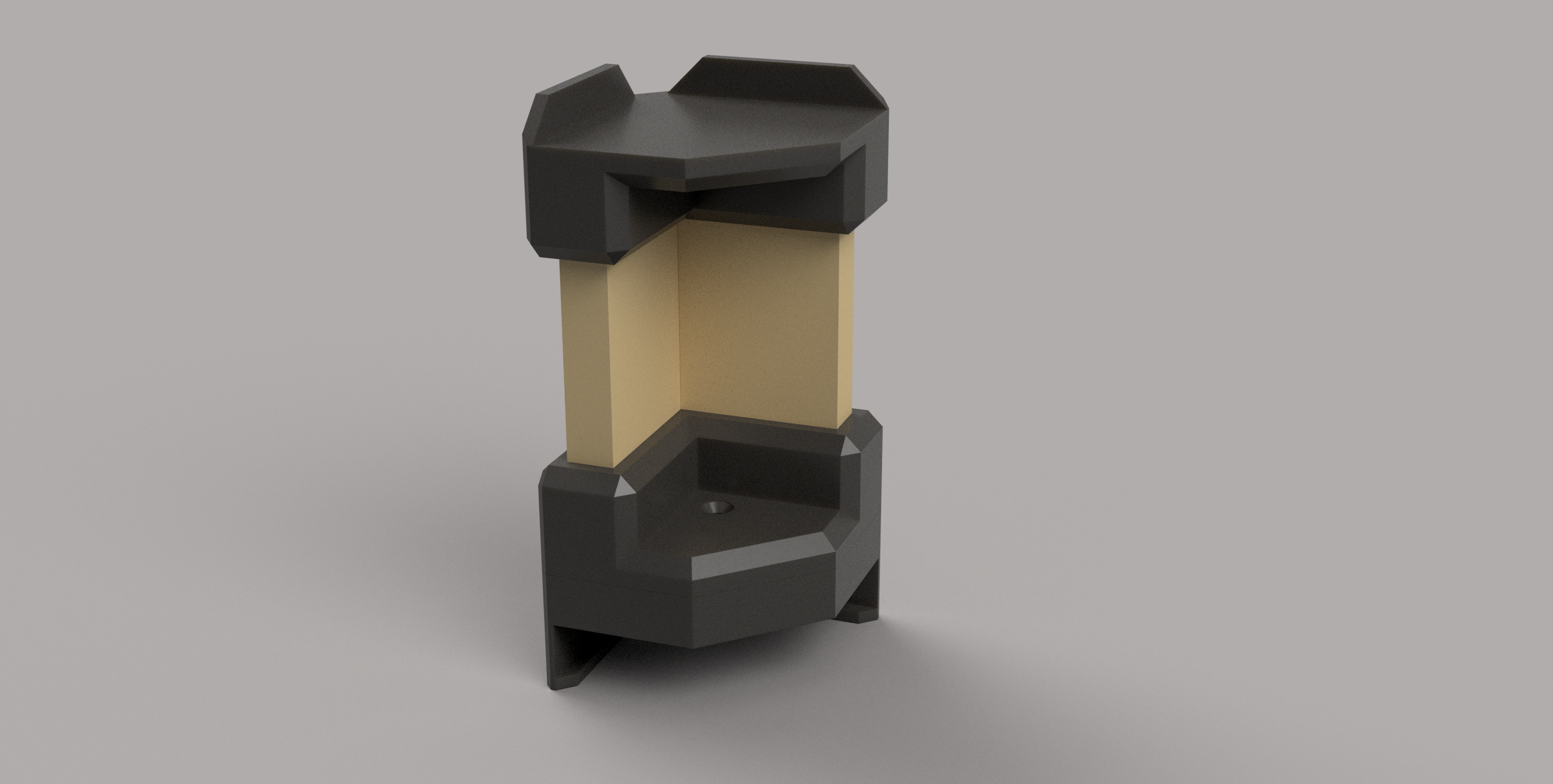

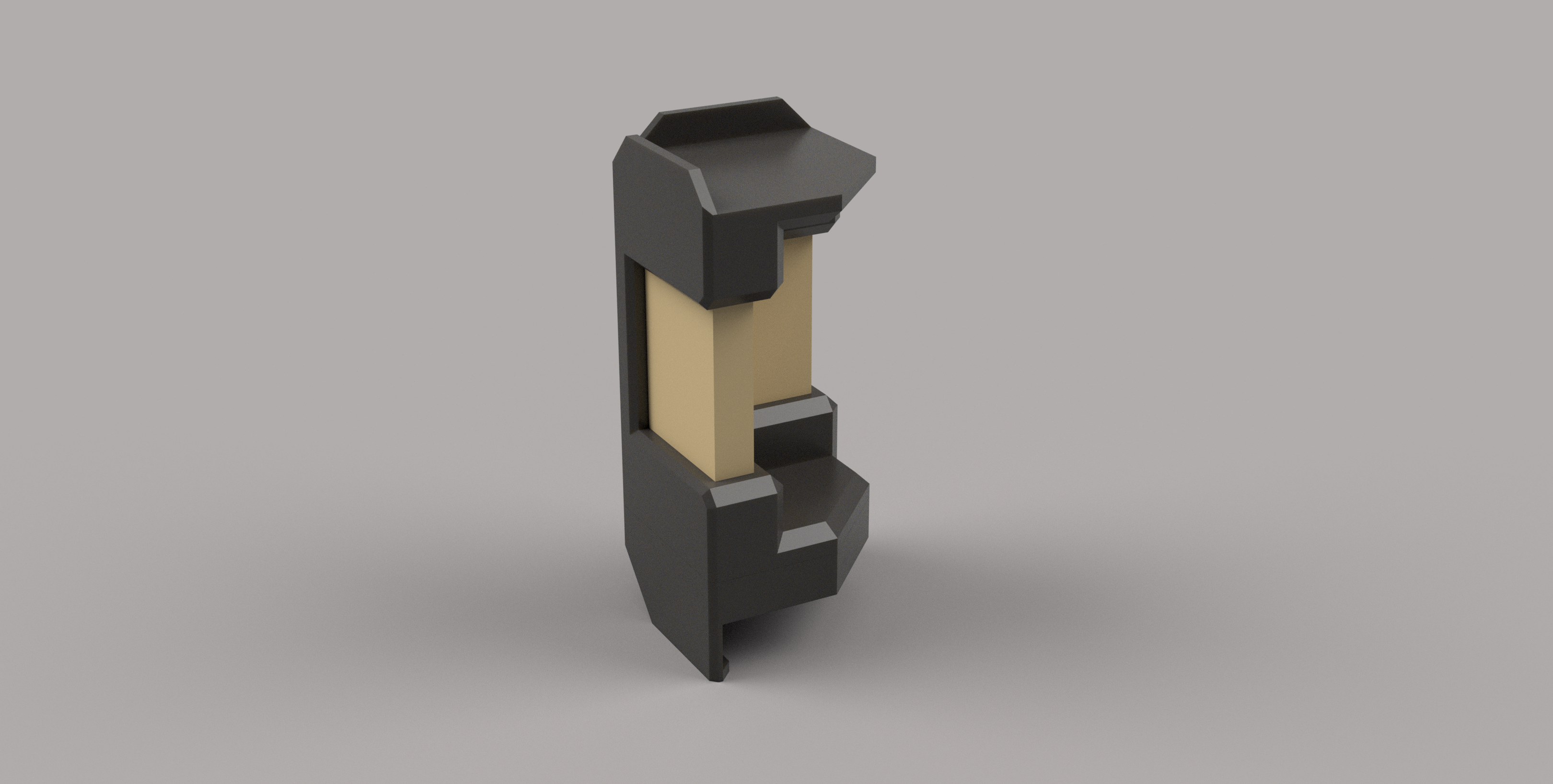

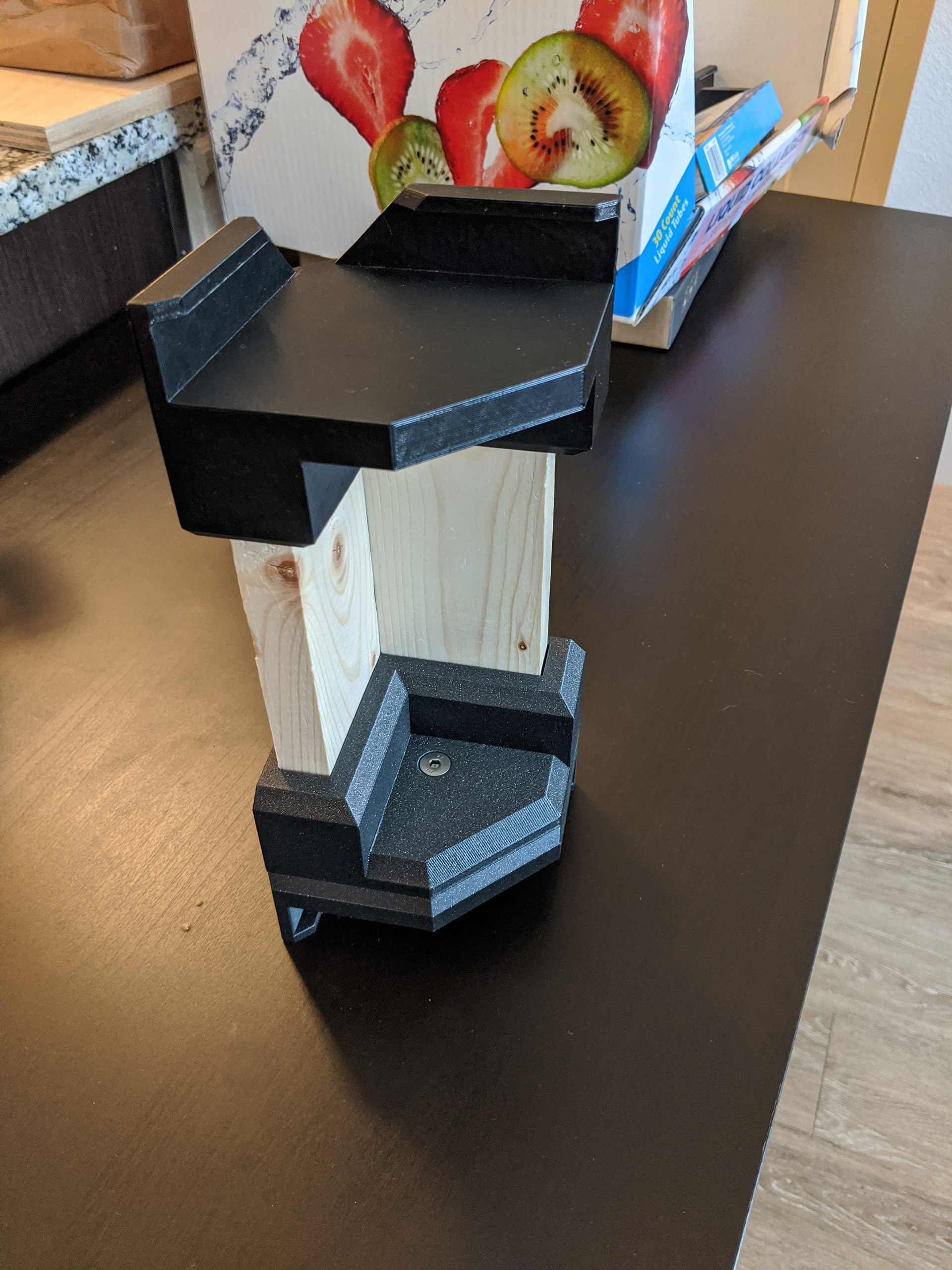

The mount design

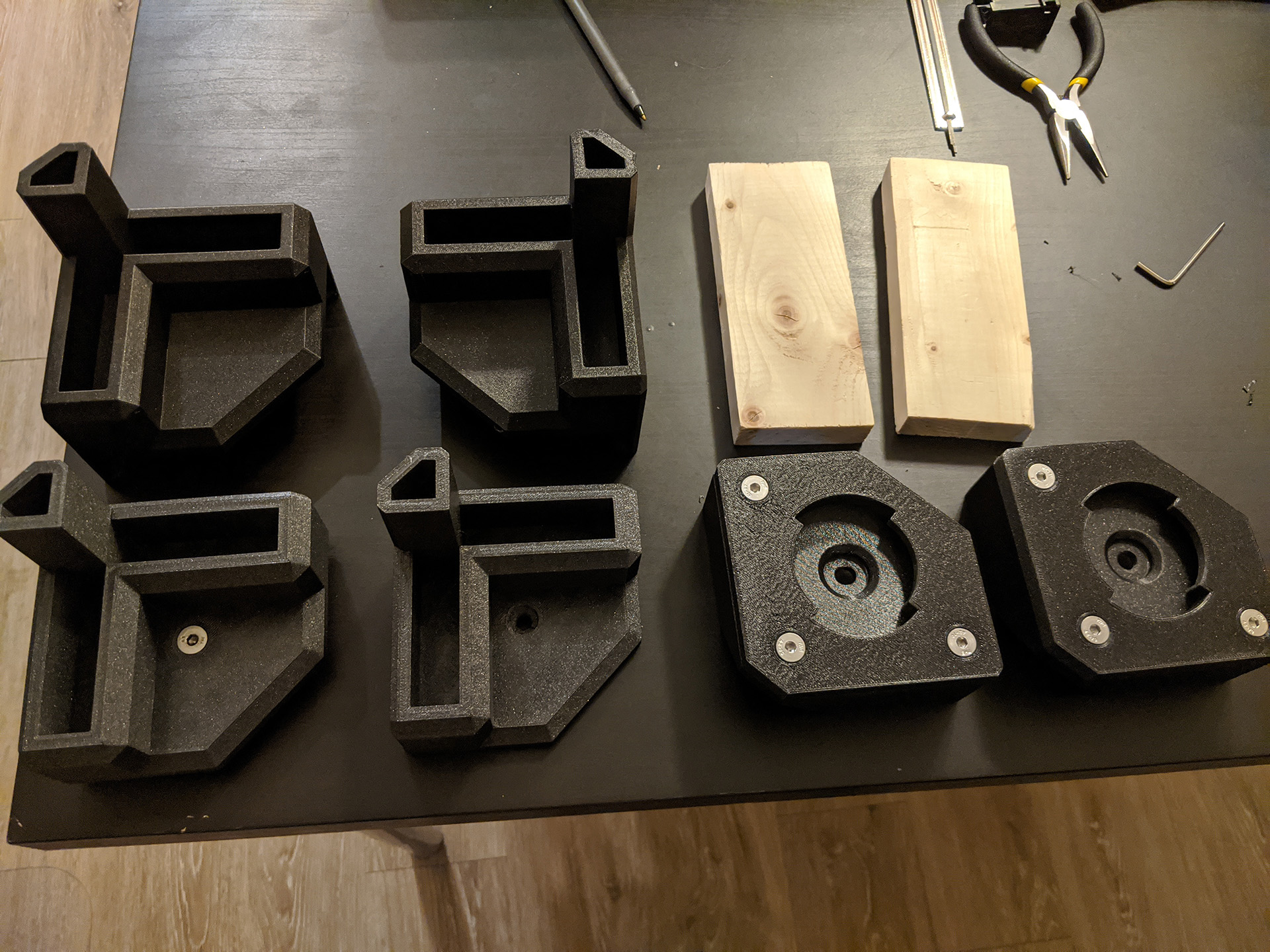

3D printed pieces
2x1 pine is cut to length and used as the vertical support.

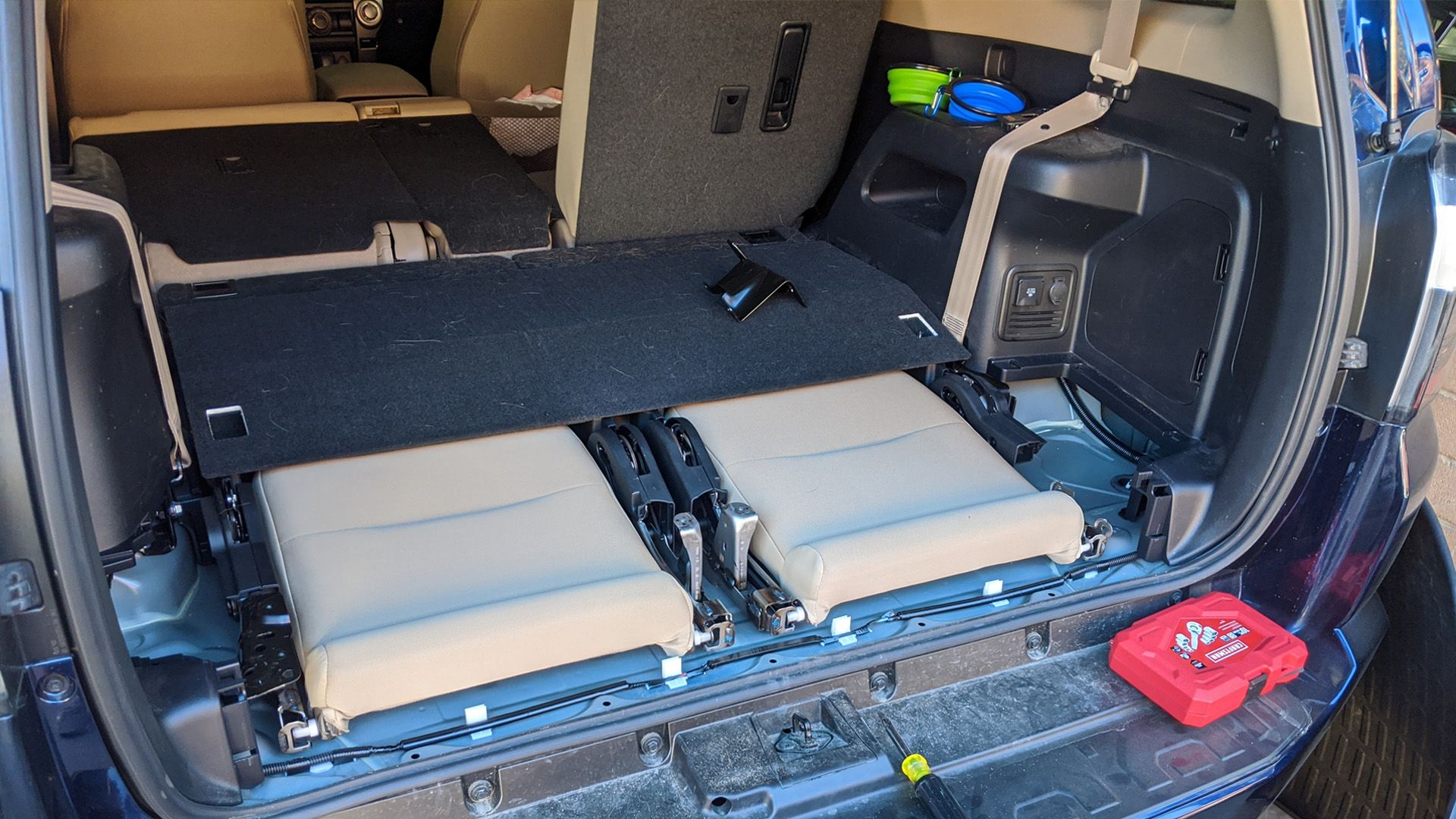

The third row seats in the 4runner before they were removed

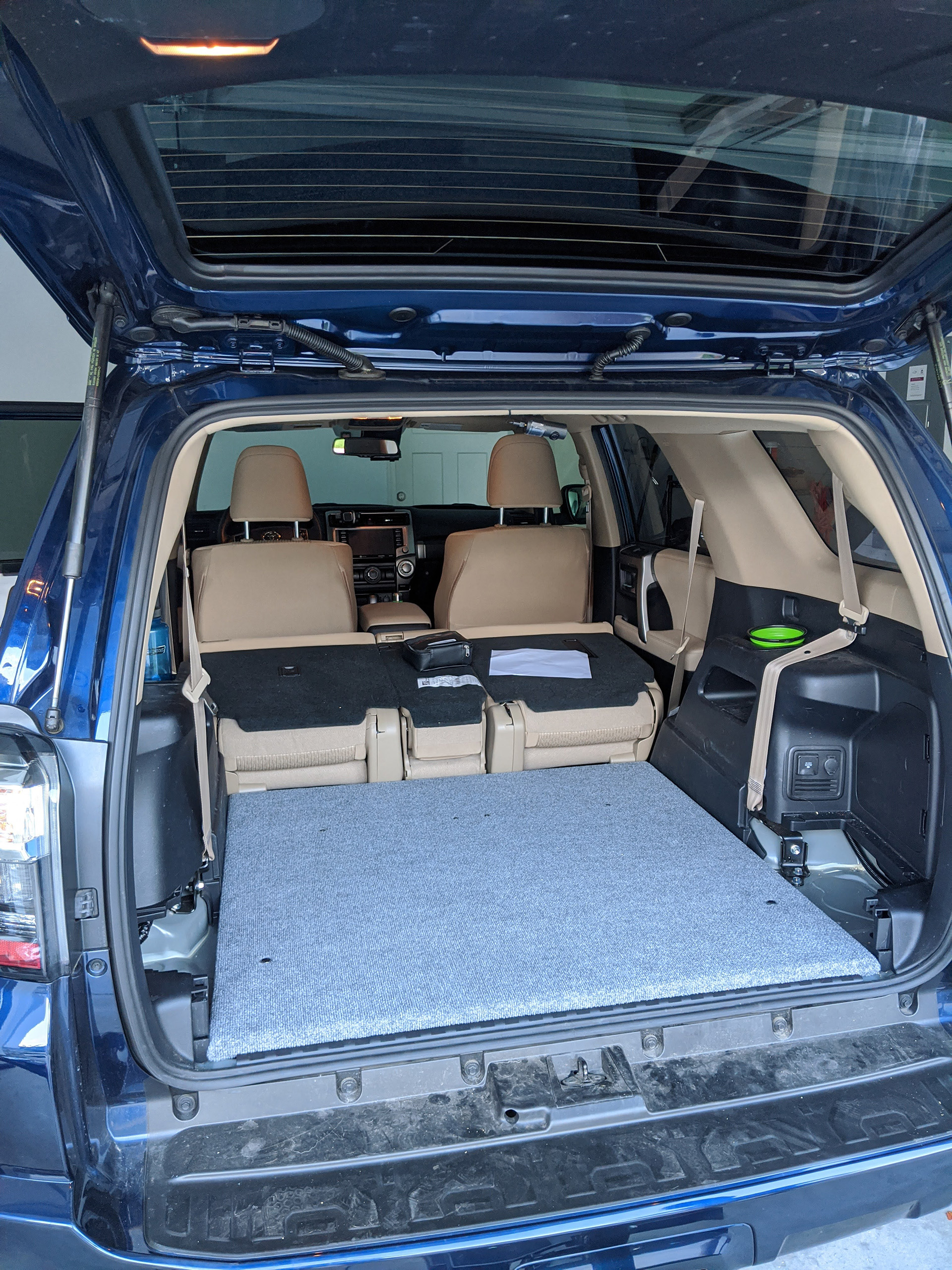

Initial platform used to replace the seats. This gained about 7 inches of vertical clearance in the trunk area.

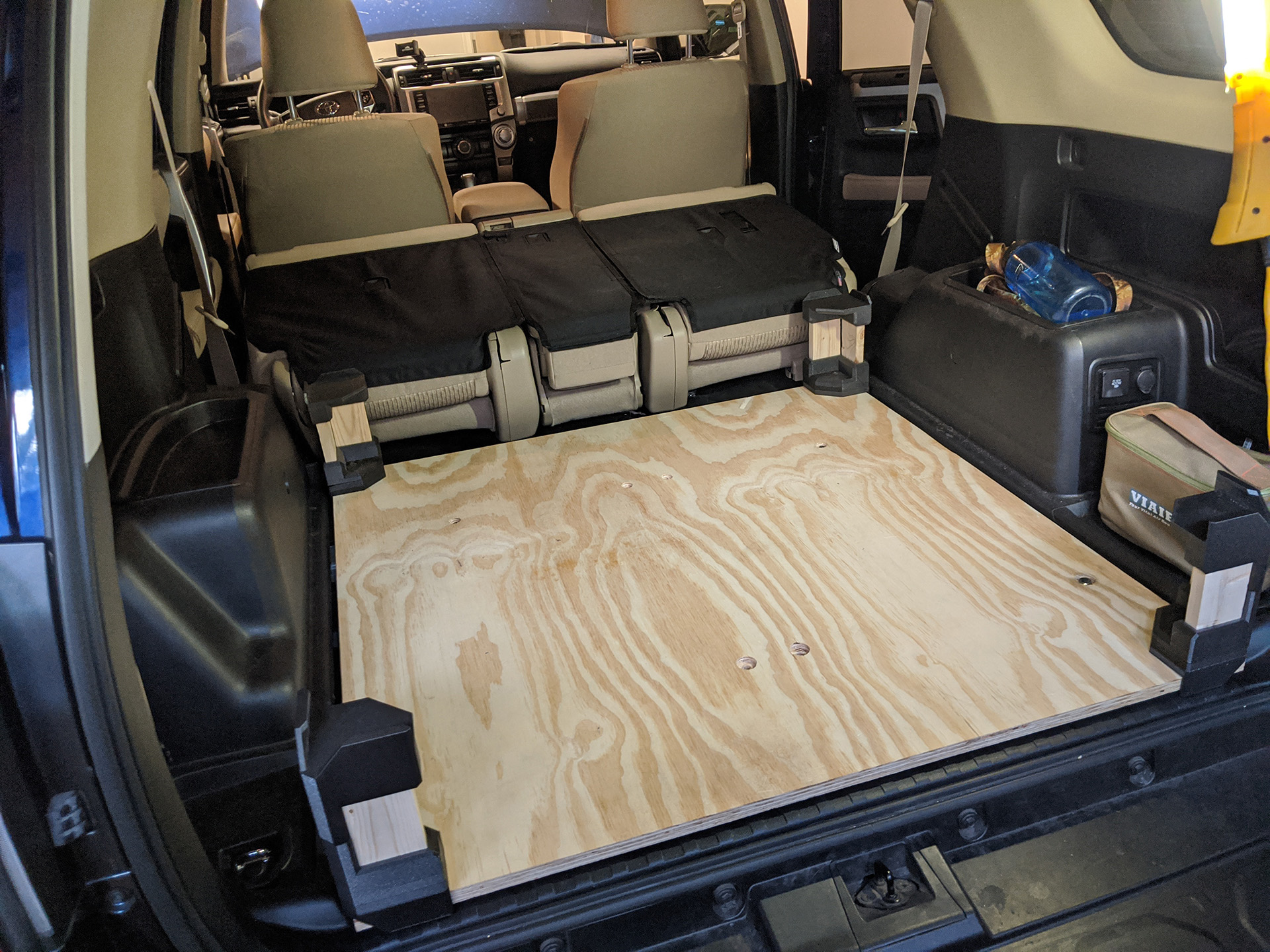

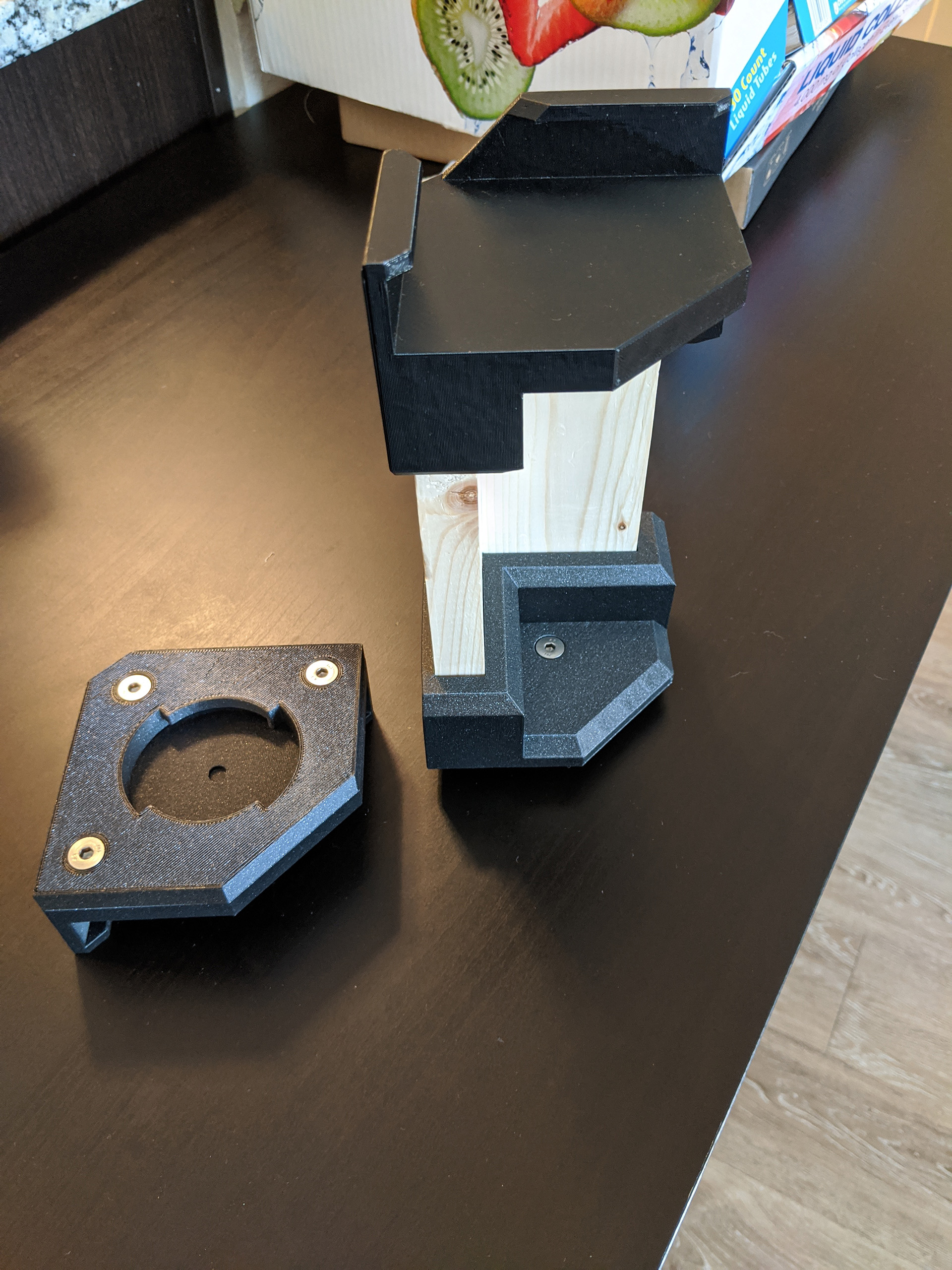

One mount for each corner which can be easily removed

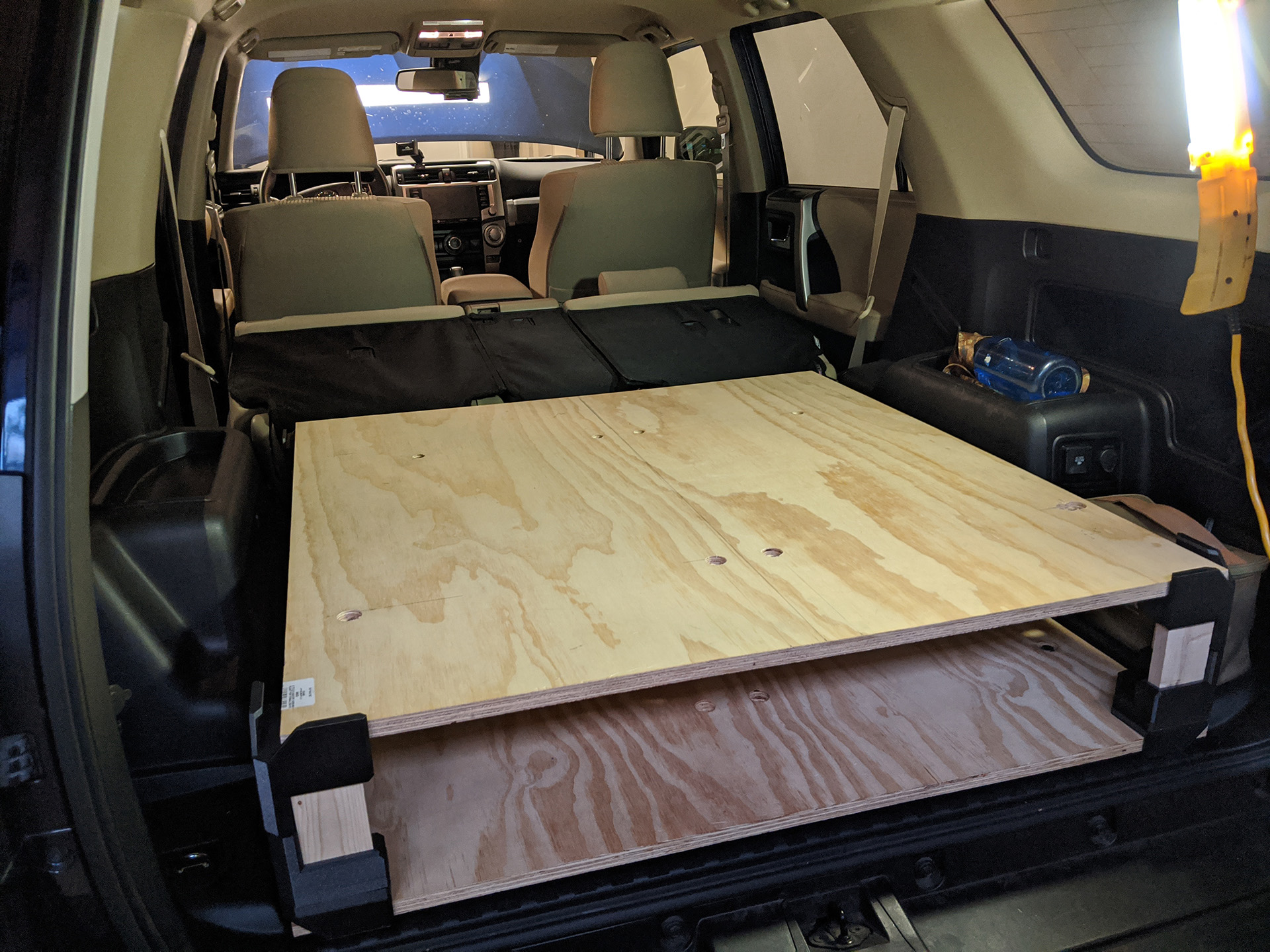

3/4 inch birch used for for both the lower and upper surface
